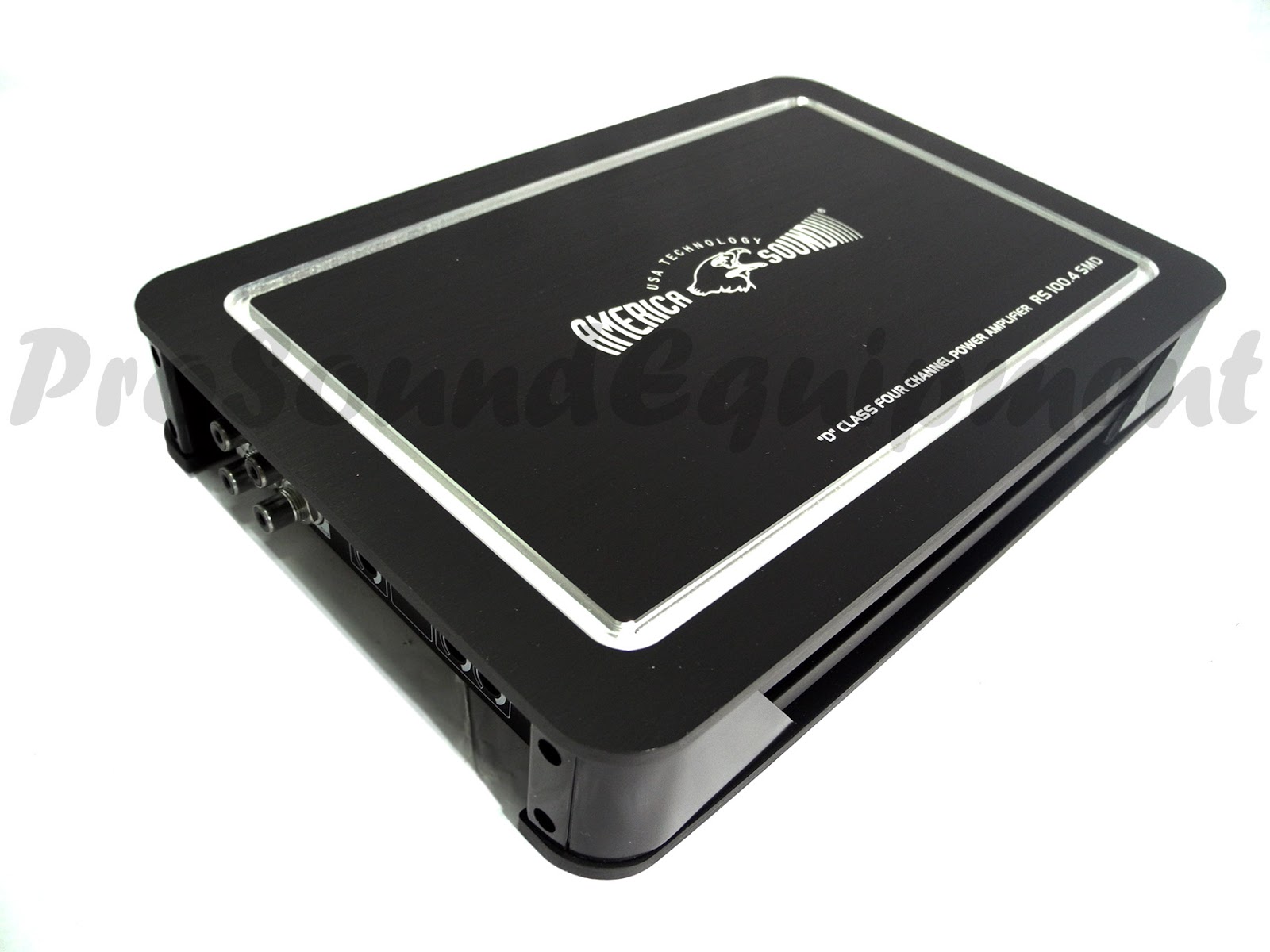

(REFERENCE SERIES D CLASS SMD 4 CHANNEL POWER AMPLIFIER)
FEATURES
- 4 Channel Power Amplifier
- 2 Ohm Stable in Stereo mode
- Bass Boost control
- Low Level input
- MOSFET power supply
- Thermal Protection
- Short circuit protection
- NI-plated RCA connectors
- LED Power and Protection Indicator
SPECIFICATION
- 2CH / 3CH / 4CH Operational
- RMS Power at 4 Ohm Stereo : 100W x 4CH
- RMS Power at 4 Ohm Bridge mono: 200W x 2CH
- RMS Power at 2 Ohm Stereo: 380W x 4CH
- Max. Power: 480 Watts
- Freq. Resp. : 20Hz-30kHz (-3dB)
- Signal Noise Ratio: 90dB
- Impedance: 22K Ohm
- Sensitivity: 300mV~4V
- T.H.D.: < 0.05 %
- Hi Pass Freq: 50Hz-500Hz
- Low Pass Freq.: 50Hz-500Hz
- Bass Boost: 0~12dB
- Supply Voltage: 11-15V DC
